Utility vehicles

Utility Vehicle Long Bed

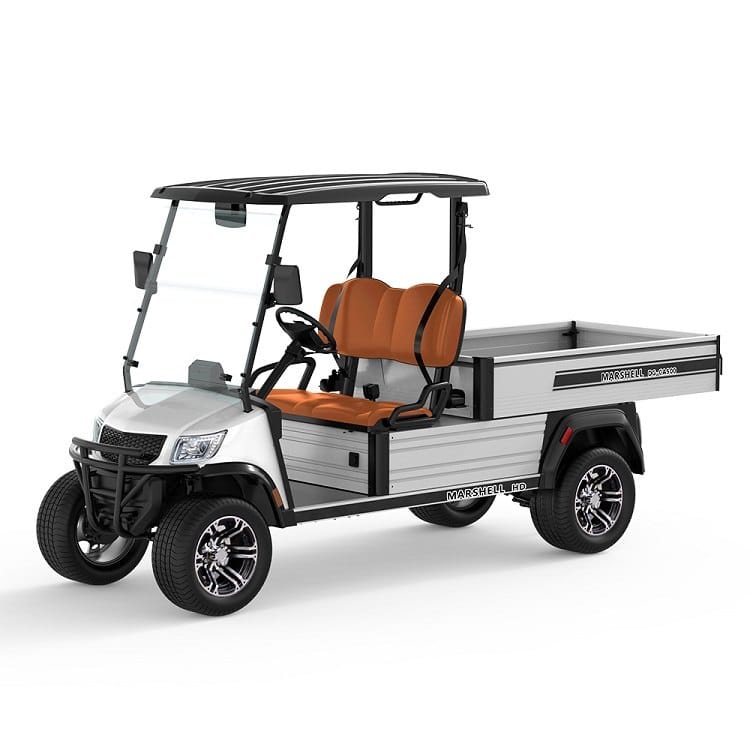

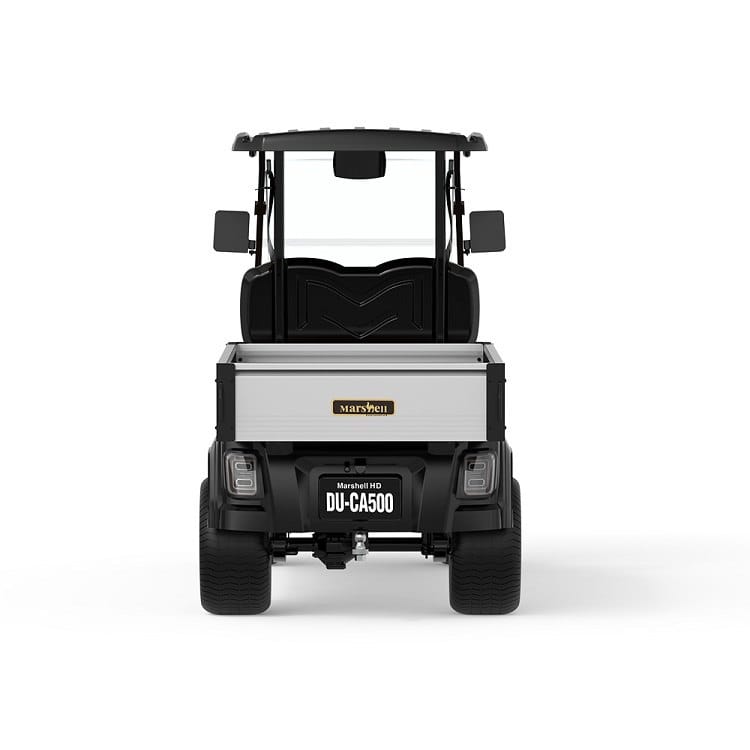

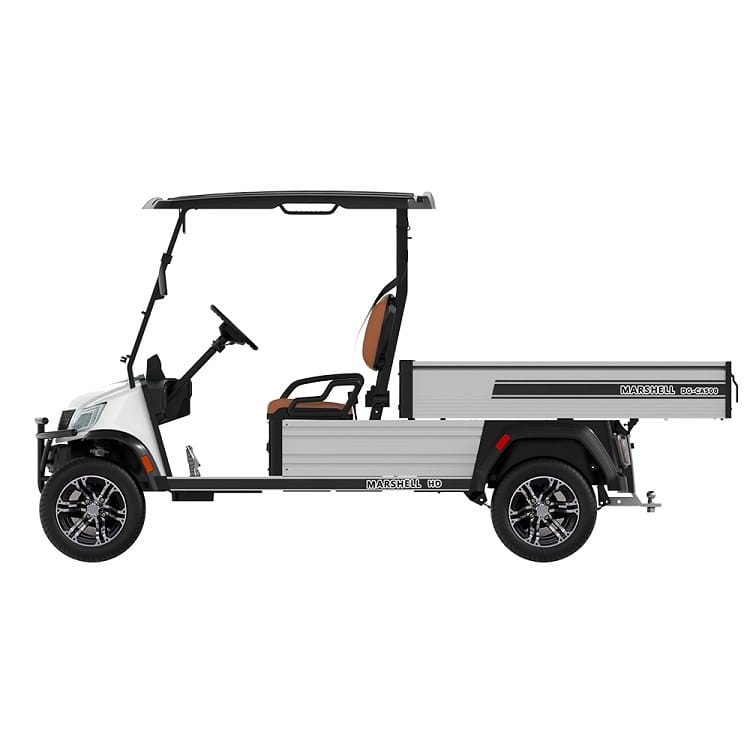

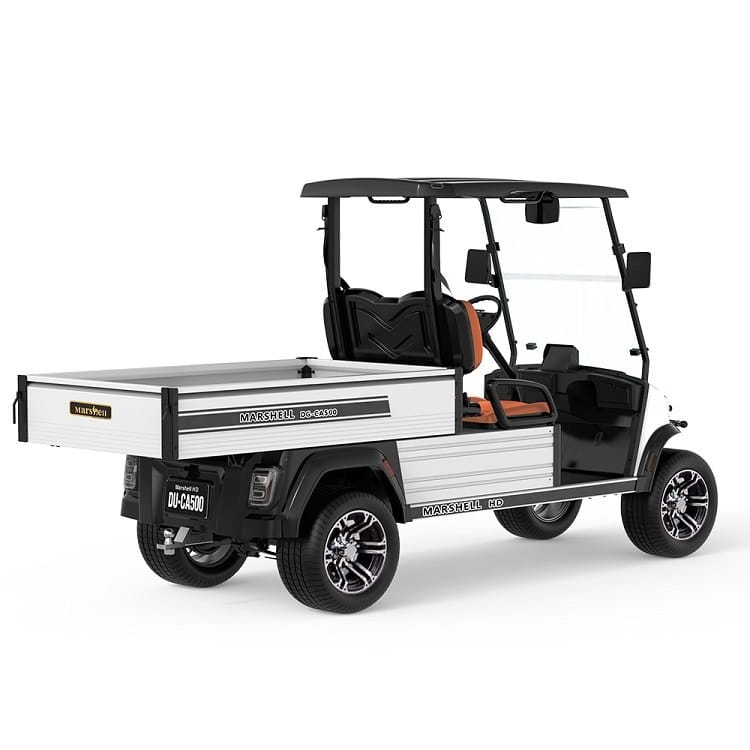

electric utility vehicle with a 1.8 m hydraulic tipping bed

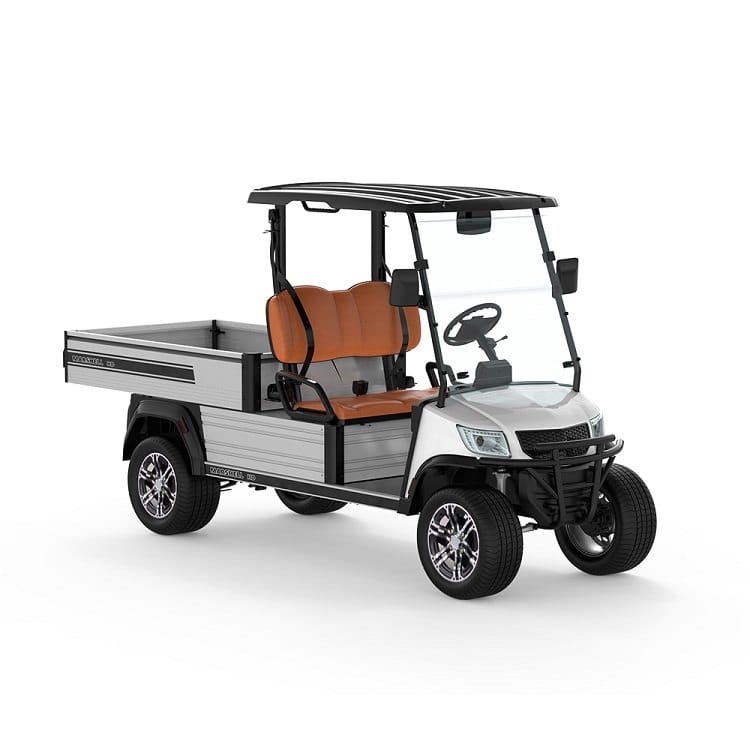

White electric utility vehicle with a long aluminium drop side tipping bed
Electric utility vehicle with a 1.8 m hydraulic tipping bed
Electric utility vehicle with a 1.8 m hydraulic tipping bed
Electric utility vehicle with a 1.8 m hydraulic tipping bed
Bed length
1.8 m
Bed loadtipping
500 kg
Rangeabout 37 miles
60 km
Length
3.8 m

Price: Request a quote. We price the vehicle you want, delivery included.

This is the long bed utility vehicle: an 1800 x 1150 mm hydraulic tipping bed rated to 500 kg, on a 2430 mm wheelbase and a 3.8 m chassis.

About the Utility Vehicle Long Bed

Same running gear and same 500 kg rating as the short bed, with 800 mm more bed. At 1800 mm it takes fence posts, timber, ladders and pallets that simply overhang the shorter one, which is the entire reason to choose it.

The cost is 740 mm of overall length and 380 mm of wheelbase, on the same 4.5 m turning radius. On an open site that is nothing; through a stable yard it is the difference between one manoeuvre and three.

Where the long bed earns its keep

  • Fencing, forestry and estate work carrying long materials
  • Grounds teams moving ladders, poles and staging as well as loose loads
  • Sites where the alternative is a second trip or a trailer
  • Anywhere the load is bulky rather than merely heavy

What it will not do

  • It carries the same 500 kg as the short bed. The extra is length, not capacity, so a dense load gains nothing from choosing this one.
  • 3.8 m long on a 4.5 m turning radius. Measure the yard before ordering.
  • Two wheel drive at 20% climbing, like the short bed. Rough or steep ground with a load on is the UTV line.
  • The charger is 20A here against 25A on the short bed, so a full charge takes longer.

Utility Vehicle Long Bed specification

The full figures for this model, as published by the manufacturer. Where a figure is not published we leave the row out rather than estimate it.

Compare with
Performance
Top speed25 to 28 km/habout 16 to 17 mph
Range on a charge60 kmabout 37 miles, as stated by the manufacturer
Climbing capacity20%
Braking distance6 m
Turning radius4.5 m
Load carrying
Cargo bed1800 x 1150 x 310 mm
Payload500 kg
TippingHydraulic
Motor and battery
MotorAC 48V, 5 kW
Controller48V, 450A
BatteryLithium ion, 51.2V 150Ah
ChargerOnboard, 48V 20A
Dimensions
Length, width, height3800 x 1290 x 2010 mm3.8 m long
Wheelbase2430 mm
Track, front and rear960 mm / 1010 mm

Specifications are the manufacturer’s own published figures for this model. Range and climbing figures are measured in level, unladen conditions, so treat them as the ceiling rather than the number to plan a hilly site around.

Options

Fitted to order. Tell us which you want and they are priced in the quote.

  • Foldable acrylic windscreen
  • Weather enclosure
  • Side mirrors
  • Lead acid battery in place of lithium

Price and ordering

As a rule, buying wins if you would use it more than a few weeks a year or need it available without arranging anything. Below that, hiring usually costs less and takes the maintenance off you. The calculator works it through on your own numbers rather than ours.

Buy

Utility Vehicle Long Bed, built to order

Price

Request a quote

The battery, the wheels and the options change the figure enough that a headline price would be wrong for most buyers, so we price the vehicle you actually want, delivery included.

Get a priceWork out hire or buy
Call 020 3036 2621

Questions about the Utility Vehicle Long Bed

How long is the bed?
1800 mm by 1150 mm by 310 mm deep, against 1000 mm on the short bed version. Both are rated to 500 kg and both tip hydraulically.
Does the longer bed carry more?
No. Both are rated to 500 kg. The long bed carries bulkier loads, not heavier ones, so choose by the shape of what you move.
Will it fit through a standard gateway?
It is 1290 mm wide, so width is rarely the problem. Length is: 3.8 m with a 4.5 m turning radius needs more room to come about than most people expect.
How much does it cost?
We price to specification rather than publish a figure. Tell us what you are carrying and where, and we will quote the vehicle, the delivery and the lead time together.
